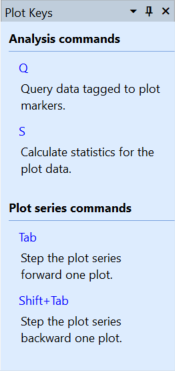

Plot Keys Pane
The Plot Keys Pane is a docking pane that
accesses all keystrokes and command shortcuts for
Plot Windows. This is a "task window", a form of help
window that provides both a short description and a hot link for
executing tasks. It is both useful for learning the keyboard
commands of Plot Windows and for executing the tasks directly, for
example when the window has an active command marking mode
like
Statistics or
Plot Point Measurements that may render
keyboard commands inactive. The colored links in this pane execute
the command regardless of the Plot Window's command mode. Thus, it
may be useful to keep this pane handy as a tab on window border. To
preserve the state of docking panes for future Image Windows, click
the
Docking Panes toolbar button or check Auto-save Docking Panes in the
General Properties window.
|
|
-
The Plot Keys Pane is opened or closed
using theOpen Plot Keys and
Close Plot Keys command in the
Plot > Window menu.
-
Single keystroke commands (not Ctrl commands) require the Plot Window to have the keyboard focus. If unsure,
click inside the window to give it focus.
-
NOTE: If the Plot Keys Pane is
temporarily opened from a tabbed state, commands that open other
panes may open them behind the Plot Keys Pane. The new pane
is revealed when the Plot Keys Pane closes.
|
The table below describes the keystrokes and command shortcuts
available n the Plot Keys Pane. Note that the Ctrl
commands duplicate some menu commands. Common keyboard shortcuts
likeCtrl+O (Open File) and
Ctrl+P (Print) that are not specific
to
Plot Windows are not included.
|
Plot Keys
|
|
Q
|
Execute the View > Plot
Query Mode command to list point data in the
Plot Point Data Pane.
|
|
S
|
Calculate
Statistics for all pixels inside the image cursor.
The type of statistic is selected in the
Statistics Properties dialog described
above.
|
|
Tab
|
Step forward to the next member of the Plot
Series (see
Plot Windows).
|
|
Shift + Tab
|
Step backward to the previous member of the
Plot Series (see
Plot Windows).
|
