Background Properties (Image
Registration)
Use this page to configure Imbedding the registered
images into a larger background image, or "background"..
|

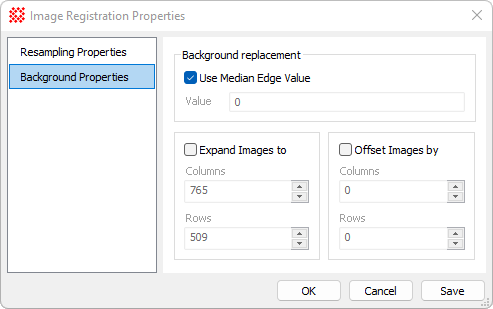

Image Registration Background
Properties
|
|
 Median Edge Value
|
Check this option to replace the blank edge pixels
with the median value of pixels in the outer margin of the
image.
|
|
Value
|
If Median Edge Value
is not checked, enter the value for blank pixels into this
field.
|
|
Expand Images
|
Check this box to expand images to a larger size
as part of the registration procedure.
|
|
New Size
|
If Expand Images is
checked, these two fields specify the number of columns and rows in
the registered images.
|
|
Offset Images
|
Check this option to offset each registered image
in its output image.
|
|
Offset Position
|
If Offset Images is
checked, these two fields specify the column and row
offset of each image in the output image.
|
The Expand and
Offset settings can work together to
make a large image into which the other images are
Imbedded.
-
If the Expand
Images option is checked, the images will be enlarged to the
stated number of columns and rows.
-
If the Offset
Images option is checked, the resampled images will receive
the sated amount of shift.
Related Topics
Image Registration Properties
Resampling Properties
Marker Properties
Mira Pro x64 User's Guide, Copyright Ⓒ 2023 Mirametrics, Inc. All
Rights Reserved.
|
on the Image Registration toolbar and
select the Background tab.
