Methods tab (Image Calibration)


The Methods tab describes how to do each of the methods selected on the Procedures page. Each method has a set of references that must be set using this page. Each method of interest is selected from the tree control. When a method is selected, its preferences appear on the right side of the page.

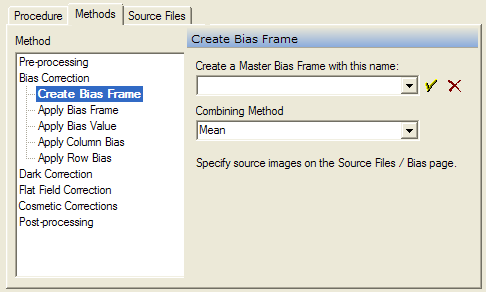

Below is shown a typical Method page. In this case, the Create Bias Frame method is selected. To configure the method for use, its preferences must be set as needed. The preferences for all methods are saved and restored by the Profile control on the main Image Calibration dialog. Remember to update changes to the method by clicking the [Apply] button.

Description of Methods

The methods in the table below are available in Mira.

Image Calibration Methods

Rename File Extensions

Changes the file extension of a list of files. For example, you may want to change the fie names from *.fits to *.fts.

Change Headers

Modifies the headers of the images:

Add new keywords, Change keywords values, or Rename keywords. For example, you might need to rename the nonstandard keyword "EXPOSURE" to the standard keyword "EXPTIME".

Create Bias Frame

Creates a master bias frame using source files described on the Source Files > Bias page. The bias source files are combined using one of the specified methods.

Apply Bias Frame

Applies a bias frame. The bias may be displayed, in a named file, or the result of the Create Bias Frame method.

Apply Bias Value

Applies a bias value. The value may be a number or it may be taken from the header of each Process Image.

Apply Column Bias

Applies a Column Bias correction. The correction is taken from either the underscan or overscan columns.

Apply Row Bias

Applies a Row Bias correction. The correction is taken from either the underscan or overscan rows.

Create Dark Frame

Creates a master dark frame using source files described on the Source Files > Dark page. The dark source files are combined using one of the specified methods. This method can create a single master dark or a library of master darks.

Apply Dark Frame

Applies a dark frame or a library of master dark frames. The dark may be displayed, in a named file, or selected from among a library of darks using different integration times. The dark(s) can also be taken from the result of the Create Dark Frame method.

Create Flat Frame

Creates a master flat frame or a library of master flat frames using source files described on the Source Files > Flat page. The flat source files are combined using one of the specified methods..

Apply Flat Frame

Applies a flat frame or a library of flat frames to the data Images. The flat may be displayed, in a named file, or selected from a library of flat field frames using different filters. The flat(s) can also be taken from the result of the Create Flat Frame method.

Apply Pixel Mask

Applies a pixel correction mask loaded from a file. This mask may be the result of the Create Pixel Mask command or created using the Edit Pixel Mask command.

Apply Blemish Mask

Applies a blemish correction mask to repair rows, columns, and point defects. You can create blemish masks using the Edit Blemish Mask command.

Apply Cosmic Ray Filter

Applies a cosmic ray filter to the image. This correction replaces pixels that deviate too much from the values of neighboring pixels.

Trim To Size

Trims the output images to a finished size. This is basically a Cropping command.

Change Data Type

Changes the final data type of the output image. This applies only to data frames, not to calibration images that are created. This method produces the same effect as the Change Data Type menu command.
