Plotting Examples


Below are shown some examples that illustrate the image plotting capabilities of Mira.




The figure below shows a simple Line Profile plot in Pixel Coordinates.

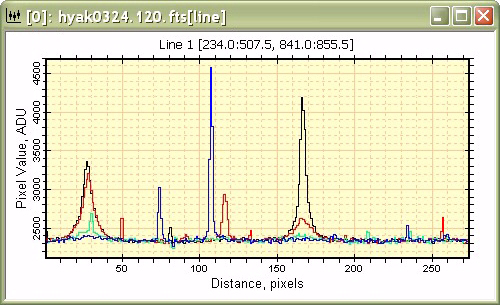

The following example shows a Line Profile with several over-plotted Plot Series created from data along lines parallel to the first line.

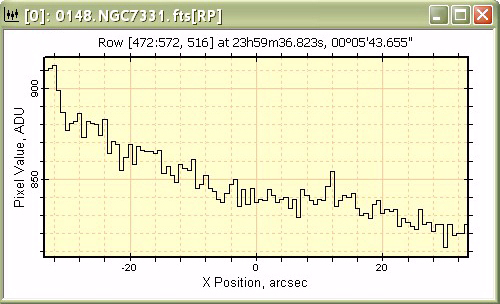

The figure below shows a Row Profile from an image with a World Coordinate System calibration.

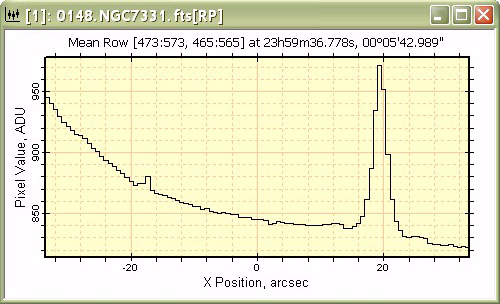

The next figure below plots an Average Row sampled over 101 rows and using world coordinates.

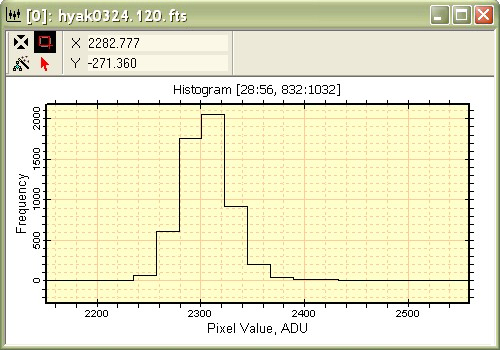

The next plot shows a histogram of pixel values inside a rectangular region of the image.

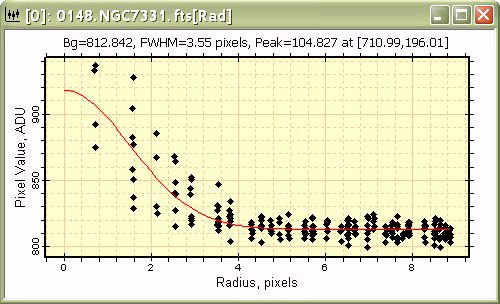

The following plot shows a Radial Profile plot with the FWHM value calculated from a fit to a point in the image data.




The following plot shows a Pixel Series Plot. This graph shows points at the same location vary among different images of an image set. The points from a given image all have the same color.
