Radial Profile Plot


The Radial Profile Plot shows the intensity of all pixels surrounding a point. Mira calculates the Full Width at Half Maximum ("FWHM") by fitting a PSF + Constant model to the point data. The PSF (Point Spread Function) model may be selected as a Moffat or Gaussian function using the [Advanced] button in the Radial Profile Properties. Properties that control the fit and calculations are set using the Radial Profile Properties dialogs. Fit results are listed in the Main Message Pane of Mira's main window.

Procedure

  1. Move the center of the Image Cursor to the point at which to make the plot. If using the centroid, you need only to move the Image Cursor to within a few pixels of the target position. If the Image Window is not in "Cursor" mode, then you can jump the cursor to the target position by holding down [Shift] while clicking on the target.

  2. Use the Plot > Radial Profile menu command or click the button. This command is also operated using the 'R' keystroke command when the mouse pointer is hovering over the target Image Window. Remember that the mouse position has no effect on the object measured because the measurement uses the coordinates of the Image Cursor.

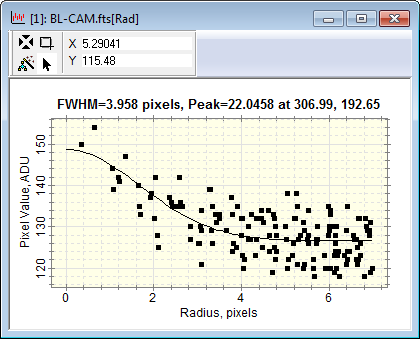

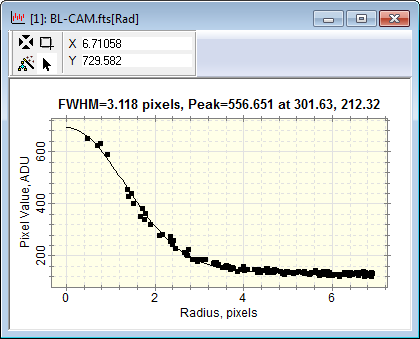

The plot below was made from an extremely weak point source. Compare the small profile bump to the background noise.

After computing the FWHM value, Mira saves the value into the image header using the PSF-FWHM keyword. This value is saved in units of pixels. In addition, if you create the plot using world coordinates (see below), Mira also saves the FWHM in world coordinate units using the WCS-FWHM keyword.
