Report Windows

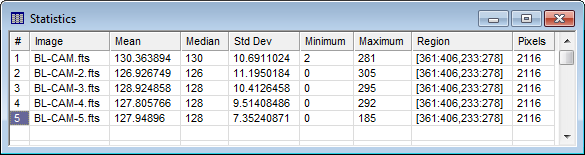

Report Windows list the results of measurements in a grid format. They are similar to a Measurement Pane but the grid is displayed in a top-level window (which has a menu bar). The grid properties can be changed using the the Grid Properties command. A typical Report Window is shown below.
The various Report windows provide common functionality for work with the table data. You can edit, sort, rearrange, and save the contents of the table. For Report Windows, the Report Window Menu and the Grid Command Menu contain commands for manipulating the tabular data. These are described in Grid Controls.
You can control whether Mira prompts to confirm closing or saving a Report Window using the check list item in the General Properties dialog.
Accelerators in the table below execute commands when a Report Window has focus.
Report Window Accelerators
|
Ctrl+A |
Opens the Grid Properties dialog. |
|
Ctrl+C |
Executes the Copy command, which copies the selected cells to the Windows clipboard. |
|
Ctrl+N |
Executes the New command to create a new table document for working with data in a Grid Control. |
|
Ctrl+O |
Executes the File > Open command, which displays the Open dialog. |
|
Ctrl+P |
Prints the Report Window. |
|
Ctrl+R |
Opens the General Properties. Here you can set global Properties for working with images and plots, as well as other aspects of the user interface. |
New (New Document), Measuring Images, Measurement Panes, Grid Controls, Grid Properties dialog, Grid Command Menu, Report Window Menu, Create Chart from Table Data
