coefficient forcing is disabled.Using Coefficient Forcing (1-D Fit Package)
Coefficient forcing allows you to specify the values of one or more coefficients of the fit. Forced coefficients use the assigned value and are not determined by the fit. Use this feature when you want to completely remove a coefficient from the equation being fit or you know the value and do not want it estimated. The examples below shows the result of coefficient forcing when fitting a parabola having up to 3 terms.

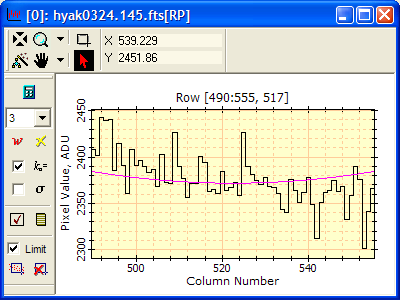

This is the original plot showing a simple 3-term
fit without sigma clipping. The checkbox is un-checked, so
coefficient forcing is disabled.

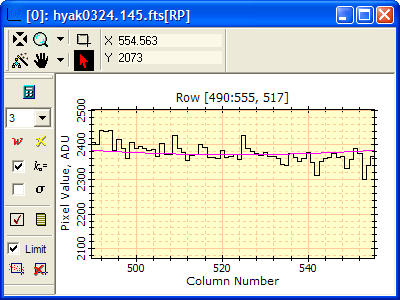

The next figure shows the same data being fit
with Coef[1] = 0.0. In other words, the slope term in the equation
was forced to a value of 0. The value (0.0) to force was entered on
the Set
Coefs page, which is opened from the button of the toolbar.

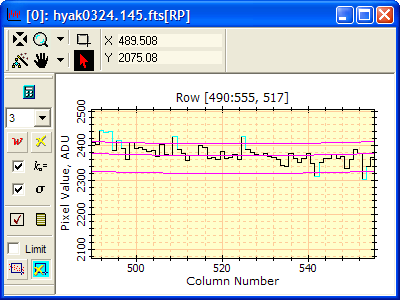

The next 2 pictures show the same fit using Coef[1] = 0.0, but with sigma clipping disabled and enabled (both plots are re-scaled like the others shown further below). The sigma clipped points are colored blue. For these data, the optimal fit requires a non-zero slope, and the standard deviation of the fit increases from 20 to 26 when Coef[1] is forced to 0.

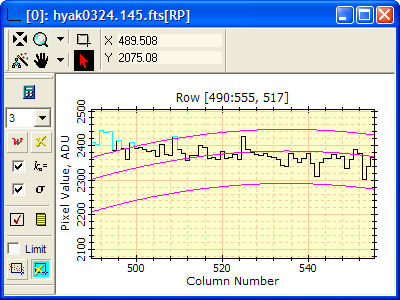

The next figure shows the fit after forcing Coef[1] = 1.0. This sets the slope to 1.0 and allows the other two terms of the parabola to be fit. Forcing the slope to 1.0 results in the parabola having to turn downward.

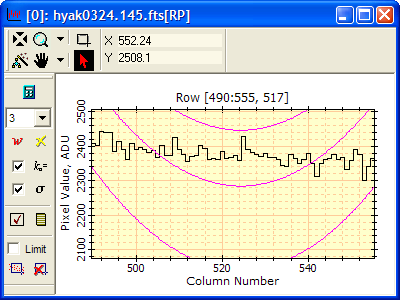

The next figure shows the fit using Coef[2] = 0.25, that is, with the curvature term set to 1.0 and the zero-point and slope terms being fit. The result is so far from a good fit that the fit standard deviation (sigma) is very large and sigma clipping does not reject any points.
