Plot Windows

Plot Windows display 1-D data in the form of a 2-D graph, or "plot" and provide several tools for interactively working with the data. The different aspects of plotting data are described in Plotting Images and Data.

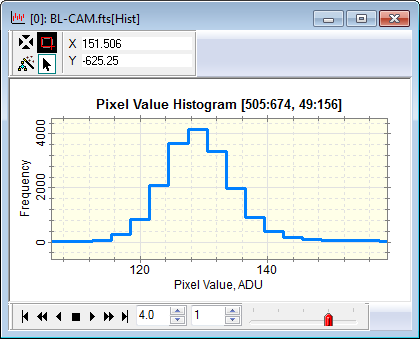

The pictures below show a typical Plot Window with the Plot Toolbar at the top border and the Plot Animation Toolbar at bottom border. The Plot Toolbar can be shown or hidden using theToolbar command in the Plot menu or the option on the Plot Properties page. In the second picture, the window is changed to Overplot mode using the command in the Plot Context Menu. You can control whether Mira prompts you to confirm closing a Plot Window using the check list item in the General Properties dialog.

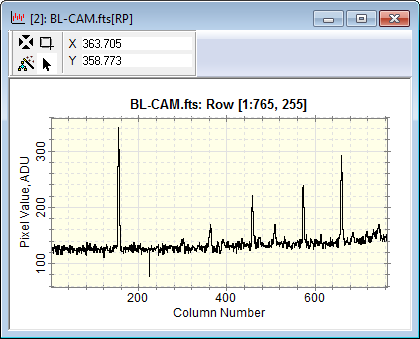

This is a typical Plot Window showing a single row plotted for an image :

Displaying Multiple Plot Series

A Plot Window can contain more than 1 series of data, such as multiple images, multiple rows, or a scatter plot of table data. You can also create multiple series using copy + paste to add data from other Plot Windows. In such cases, you can choose from 2 modes to view the multiple series:

• Animate Mode: One plot series is shown at one time. You can switch between series using the Plot Animation Toolbar.

• Overplot Mode: All plot series are displayed at once on the same set of axes.

• These alternatives are shown in the pictures below. To create these plots, a column plot was made for a single slice through an image set containing 5 images. This makes 5 plot series—one from each image.

Animate Mode

This window has 5 plot series. In this mode, only 1 series is displayed at a time.

Overplot Mode

This picture shows all 5 plot series at the same time. The color assigned to each series is configured in the Plot Properties dialog. The Plot Series Properties also can be altered afterward using the Plot Properties dialog.

There are many ways to create Row Profile Plots and Column Profile Plots like those shown above.

Plot Window Toolbars

The Plot Window provides a number of toolbars for working with the plotted data.

• The top border of the Plot Window has a Plot Toolbar which acts as a control center for working with the displayed data. This is similar in function to the Image Bar of an Image Window. The Plot Toolbar has buttons for changing the appearance of the data and a coordinate readout which is continuously updated when the mouse pointer is over the Plot Window.

• If multiple plot series are graphed but displayed individually, the bottom border shows the Plot Animation Toolbar. The Plot Animation Toolbar lets you step through or animate through Plot Series in the same way the Image Animation Bar interacts with an Image Set.

Plot Coordinates

All of the profile plots show image luminance versus position or distance. For these types, Mira also provides the following coordinate system options:

• The Pixel Coordinates option measures pixel position in column or row [number].

• The World Coordinates option measures position in world units such as cm, microns, or other units. If the calibration uses Celestial Coordinates (RA, Dec), then the plot uses [arcseconds] in a relative sense.

• To change the default setting, see Plotting in World Coordinates.

Intensity (Luminance) Profile Plots

Luminance is displayed on the vertical axis of a profile plot and the horizontal axis of a histogram plot. The Luminance Axis label includes the units of luminance if the image header contains such information.

Changing the Plot Properties

The properties of the plot can be set before the plot is created and changed after the plot is created.

• The Image Plot Properties control how the plot is created from the image. This includes, for example, whether Pixel or World Coordinates are used and what colors are used for multiple plot series.

• The Plot Properties control the way the finished plot is displayed. You can change the axis scaling, colors, fonts, labels, tick marks, and other properties using the pages of the Plot Properties dialog.

• The Plot Series Properties define the way the data in the plot series are displayed. This includes the size, color, and style of markers and lines.

Plot Context Menu

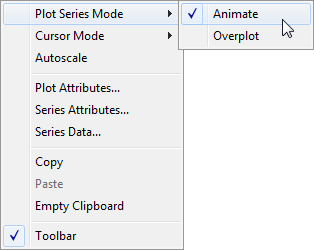

Right clicking inside a Plot Window opens a Context Menu containing some useful commands. This shows the Plot Series Mode submenu used to create the different plots shown above.

The commands in the Context Menu are a subset of those in the Plot window's menu.

Accelerator Keys

Accelerators in the table below execute commands when a Plot Window has focus.

Plot Accelerators

Saving Plot Data

To view the numeric plot data, user the Plot Series Data command. This opens the numeric data for all series into a grid window. The window has buttons to save, print, and copy the data to the Windows Clipboard.

Plot Window data can be saved to a text file using the Save as Text command. This command is available from the File menu when a Plot Window is the top-most view.

Comparing Line Profile and Row Profile Plots

The intensity profile of an image can be plotted using either the Column or Row Profile command or the Line Profile tool. There are some unique capabilities offered by each method.

Comparison of Profile Plot Types

Plot Coordinates

All of the profile plots show image luminance versus position or distance. For these types, Mira also provides the following coordinate system options:

Coordinate Axis:

• Use Pixel Coordinates to measure pixel position in column or row [number].

• Use World Coordinates to measure position in world units like cm, microns, or angular units of arcseconds.

• To change the default setting, see Plotting in World Coordinates.

Luminance Axis:

Luminance is displayed on the vertical axis of a profile plot and the horizontal axis of a histogram plot. The Luminance Axis label includes the units of luminance if the image header contains such information.

Working with Plot Series

A Plot Series is a collection of data points collected together. Usually these collections are related. For example, in a Column Profile plot, a plot series is a single sample of luminance versus position along a single line. A different series might be a sample of points parallel to the first, taken along a different column. Profile plots can show a single plot series or multiple plot series from samples along other lines. When multiple series are displayed in the same Plot Window, they may be visualized in the following ways:

• In Animate mode, the active plot series is displayed singly. The other series may be viewed by stepping or animating through the set using the Plot Animation Toolbar much the same way the Image Animation Bar steps through an Image Set.

• In Overplot mode, all plot series are displayed simultaneously as an "Overplot" on the same set of axes. If only 1 plot series is displayed, this is the default mode. In this mode, the Plot Animation Toolbar is hidden.

• To change the Plot Series Mode, see Changing the Plot Series Mode.

• To display or save the data in the plotted series, see Plot Series Data.

Averaging Adjacent Lines

Adjacent lines (columns or rows) may be combined to form a single line to be plotted. The method of combining is controlled by the Plot Averaging Mode command. The name of the plot appears in the command menu from which the plot is created (see Plotting an Averaged Line).

Plot Properties

• Image Plot Properties control how the plot is created from the image. This includes, for example, whether Pixel or World Coordinates are used and what colors are used for multiple plot series. These settings are changed using the Image Plot Properties dialogs

• Plot Properties control the way the finished plot is displayed. You can change the axis scaling, colors, fonts, labels, tick marks, and other properties using the pages of the Plot Properties dialog.

Understanding Plot Captions

Caption Above the Plot Box

The Plot Caption is the text above the plot box and below the top window border. The Plot Caption tells you information about what was plotted. In particular, it may list the beginning and ending coordinates in (x,y) form for a Line Profile Plot or it may list the column and row range for a Column Profile or Row Profile plot. Below are some examples that show how to read the column,row range in the plot caption:

Example Regions Listed in the Plot Caption

You can change the plot caption using the Labels page of the Plot Properties dialog.

Window Caption

The Plot Window caption lists the image name from which the plot was created and gives an abbreviation that describes the type of plot. The plot type is abbreviated and appended to the window caption in square brackets. For example, a Row Plot is signified by [RP] appended to the Plot window caption. These suffixes appear in the window list of the Window menu and in the Multi-tab Interface along the bottom border of Mira's main window.
