Plot Series Properties


The Plot Series Properties dialog is used to change the properties of lines and symbols after a plot is created. Use this dialog to change the marker style and size, color, and line thickness for an existing plot. The series properties may be set to default values using the Image Plot Properties page. You can also enable or disable separate series from being shown and change the caption for each series. Example

The Auto check box enables automatic updating of the plot after you change a property. Otherwise, changes take place when you click the [Apply] button.

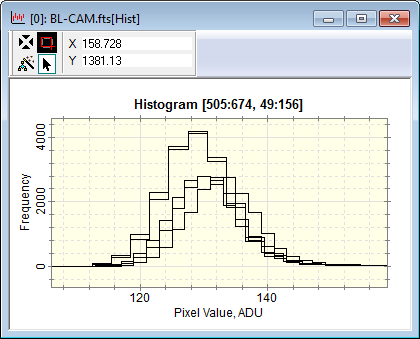

The example below shows a histogram of an image set containing 5 series, before and after making the changes shown in the dialog above. Notice that 5 different colors are used and that one of the lines has been thickened for emphasis;


Plot Series Properties

#

Indicates the index of the plot series in the Plot Window. you cannot change this value.

Use

Check this box to use the plot series in the window. If you uncheck the box, the Plot Series Data continues to exist but does not get used in the final plot. Use this option to show or hide specific series.

Symbol

Use the up/down arrows to select the symbol type. This has no effect for a series that uses a line to connect the points.

Points

Use the up/down arrows to change the point size of the symbol or the point thickness of the line for the series. One point equals 1/72 inch; a value of 0.75 to 1.0 points is about the thickness of a single pixel on a typical computer monitor.

Color

Double click the color swatch to change the color assigned to the series. This changes the marker color or line color, depending upon the type of plot.

Fill

Check this box to fill the plot symbol with solid color. Otherwise the symbols are only outlined.

Caption

This field lists the caption for the plot series. You can edit captions and save them to the Plot window.

Changing Properties for Multiple Series

This dialog allows you to change the properties of a single plot series as described in the table above. The procedure used to change multiple rows is similar to the Edit > Fill procedure in Microsoft Excel. For example, you may wish to emphasize a range of plot series using a thick line and a bright color.

To change multiple series:

1.   Point the mouse at the cell having the property you want to copy and press the left mouse button. Do not release the mouse button or you may change the cell value rather than highlight it.

2.   If you wish to change more than 1 column, drag the mouse to the left or right to highlight the other cells.

3.   Drag the mouse to other rows. Release the mouse button on the final row.

4.   Right click the mouse inside the highlighted area and select the appropriate option.
