Normalize Image
The Normalize Image command adjusts the image intensity to match a target specification, such as a specific value or a statistical intensity inside a region. A common application of this command is to match the brightness (intensity) of an image set. This dialog has two forms: a general form accessible as a menu command, and a specific form for a displayed image set that opens from the Animation Bar and processes only that specific image set. Normalize Image Set is opened only from a displayed image set; Normalize Images can take source images from an image set of files.
The Normalize Image command opens from
the Image Window > Process >
Math menu and
button on the

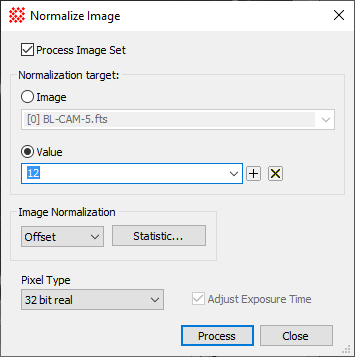

Main Toolbar. The "immediate" form,
shown first, opens when an image or image set is displayed in the

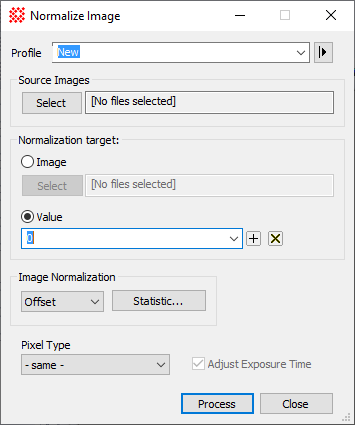

top-most window. The general form can be used to select source
images from folders, windows, or by matching templates. This
command also opens from a button on the Animation Bar.
|
Normalize Image Properties |
|
|
Profile [|>] |
Opens the Select Source Images dialog to choose images from an image window, folder, files, pattern, or a file list. |
|
[Select] |
Select the source images. |
|
Normalization Target |
|
|
Image |
Selects normalization to a statistic computed from a reference image. |
|
[Select] |
Selects the normalization target image from an image window, folder, file, pattern, or a file list. |
|
Value |
Selects normalization to a value. The value is entered in the field to the right. Use the [+] and [x] buttons to add or delete the currently displayed entry. |
|
Image Normalization |
Selects the method used to adjust the pixels during the normalization process. Offset adds a constant to the image values. Scale multiplies the image values. |
|
Normalization Stat... |
Click this button to open the Region Statistics dialog to set Properties for computing a region statistic on the images. |
|
Adjust Exposure Time |
Check this box to adjust the exposure time to correspond to the image intensity after normalizingScale method. |
|
Output Pixel Type |
Select the numeric pixel type in the normalized images. |
Image Math Commands, Combine Image Set, Region Statistics, Animation Bar
