Calculate Image Scale
The Calculate Image Scale command is a utility command that calculates the number of arcseconds per pixel for angular projections onto the image.

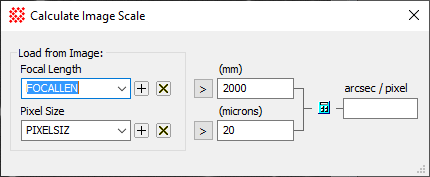

The Calculate Image Scale command opens from the Image Window > Process > Utilities menu and button on the Main Toolbar. The "immediate" form, shown first, opens when an image or image set is displayed in the top-most window. The general form can be used to select source images from folders, windows, or by matching templates.

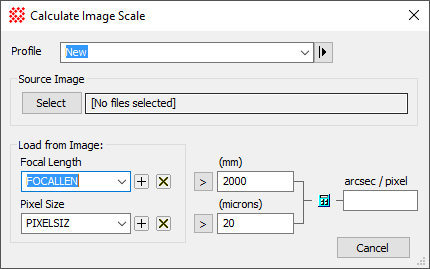

Calculate Image Scale Properties
Profile [|>] |
Selects the parameter profile for this command and allows you to save or work with existing presets. |
[Select] |
Opens the Select Source Images dialog to choose images from an image window, folder, files, pattern, or a file list. |
Load from Image |
The two values in this column may be taken from keywords in the image header. To do so, specify the keyword and click the button to transfer the keyword's value to the (mm) field.. |
Focal Length |
Enter the focal length in units of mm or select a previous value from the list. Use the [+] and [x] buttons to add or delete the currently displayed entry. |
Pixel Size |
Enter the pixel size in units of microns or select a previous value from the list.. Use the [+] and [x] buttons to add or delete the currently displayed entry. |
(mm) |
Alternately, type in the focal length instead of taking it from an image header keyword. |
(microns) |
Alternatively, type in the pixel size instead of taking it from an image header keyword. |
|
Click this button to calculate the image scale from the specified quantities. |
The image scale in units of arcseconds per pixel is labeled arcsec/pixel in the dialog. To compute this value, Mira uses the focal length in units of millimeters (mm) and the image pixel size length in units of microns. These values can be obtained from two sources: From you or from the image itself using header keywords for the Focal Length andPixel Size. After the values are entered into the two fields, click (calculate) to compute the image scale.
The Focal Length and Pixel Size are often stored in the image using header keywords. To load these values from the image, use the two History boxes on the left side of the dialog. These boxes remember previously entered values which can be recalled, or you can type new keyword names into the fields. When the keyword(s) are visible in the combo box field(s), click to load the value(s) from the image header. To compute the image scale, click the button.
