1-D Fit Messages


The 1-D Fit Messages window lists fit results in a Mira Text Editor window, which has the standard capabilities for editing, printing, saving, copying to the clipboard, etc. Verbose results are sent to this window if the Verbose flag is enabled in the 1-D Fit Menu. From the same menu, you may also list point data and other items in the message window.

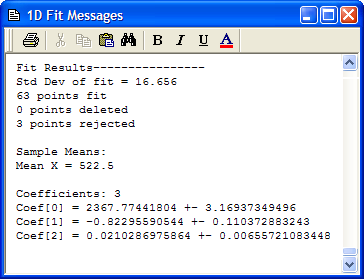

The example window above shows the result of fitting a parabola (3 terms) using sigma clipping. The sigma clipping algorithm rejected 3 points. Coefficients and their errors from the covariance matrix are listed at the bottom. Each new fit result begins with the text Fit Results-----------------.

Related Topics

1-D Fit Package, 1-D Fit Menu
