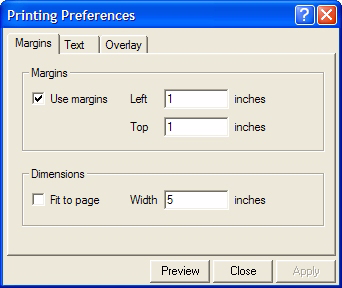

Margins Preferences (Plot)

The Margins Preferences dialog is used to position of the plot on the printed page and to set the drawing scale.

To open this page, click the Printing Preferences command in the Files menu and click the Margins tab.

Use Margins	Controls use of margins on the printed page. If checked, the specified margin values are used, otherwise Mira uses default margins.
Left	Defines the left margin on the printed page. This is used only if Use Margins is checked.
Top	Defines the top margin on the printed page. This is used only if Use Margins is checked.
Dimensions	Specified how the plot is adjusted to the printed page.
Fit to Page	If checked, the plot is scaled to fit the page, inside the margins.
Width	Specified the width of the plot on the printed page. This is used only if Fit to Page is unchecked.

Note	If Use Margins is not checked, the printed plot is positioned at the printer default margins.
