Set Linear Scale
The Set Linear Scale command attaches a linear coordinate system to the X and Y axes of the image. The scale is equally applied to both the X axis and Y axis. To set independent linear scales, use the Set Independent Linear Scales command. Keywords that define the calibration coefficients are inserted into the image header by this command.
This command is opened from the Process > Coordinates menu.
|

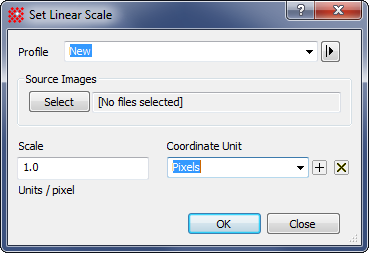

Set Linear Scale Properties |
|
|
Profile [|>] |
Selects the parameter profile for this command and allows you to save or work with existing presets. |
|
[Select] |
Opens the Select Source Images dialog to choose images from an image window, folder, files, pattern, or a file list. |
|
Scale |
Enter the value in linear units per pixel. |
|
Coordinate Unit |
Specify the units to be attached to this coordinate system. |
This command applies a World Coordinate System ("WCS") calibration to the image or image set. This calibration replaces any existing WCS. However, this command creates an Undo copy so that you can use theEdit > Undo (Ctrl+Z) command to restore the previous coordinate system. To save the arcsecond calibration, save the image in the normal way.
Set Independent Linear Scales, Set Equatorial Scale, Set Arcsecond Scale, World Coordinate System, Set Linear Coordinate Units
