Set Pixel Value Format
The Set Pixel Value Format command controls the display of pixel values in the Image Toolbar for images having a "real" Pixel Type, including 32-bit and 64-bit real images. These settings do not affect images having an integer Pixel Type.
Open this command from the command in the View > Image Toolbar menu or using the button on the Image Toolbar.
|

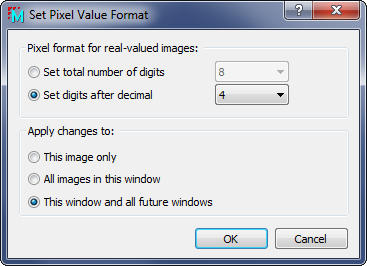

Properties of the Set Pixel Value Format command |
|
|
Pixel format for real-valued images: |
|
|
|
Use this option to use the drop list to select the maximum number of displayed digits. For example, selecting "6" with pixel values 1234.56789 and 12.34 would display them as 1234.56 and 12.34. |
|
|
Use this option to use the drop list to select the number of digits right of the decimal point. For example, choosing "2" with pixel values 123.4567 and 1234567.8 would display them as 123.45 and 1234567.80. |
|
Apply changes to: |
|
|
|
Applies the settings to this image only. |
|
|
Applies the settings to this image and all others in this Image Window. |
|
|
Applies the changes to all images in this Image Window and saves the settings for all future Image Windows. |
Set total
number of digits
