Image Toolbar
The Image Toolbar is a command center that resides at the top of Mira Image Windows. This toolbar provides user interface connections to frequently used display tools, It also shows brief image information and the coordinates of the mouse pointer as it moves over the image.
The Image Toolbar provides handy access to functions that are also available in menus and toolbars, so you may choose to hide the Image Toolbar to save space. The controls on the Image Toolbar are organized into the groups described below.
Control Groups of the Image Toolbar
|

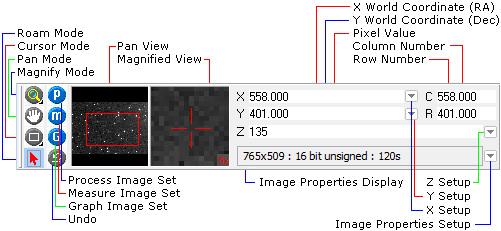

These 4 buttons in the left-most column at the left end of the toolbar are used to adjust the image magnification, panning, image cursor, and the default (arrow) mode which disables the other 3 command modes. |
|
|
The 3 top buttons in the second column near the left end of the toolbar control multi-image capabilities for image sets (processing, measuring, and Graphing). When set to single-image mode, the image set button shows small "1" to the right of its letter. |
|
|
The bottom button in the second column near the left end of the toolbar provides an undo for the last processing that changed the image. |
|
|
Mira displays image coordinates in array units (column, row) and in world coordinate units such as cm, microns, (RA, Dec), etc. |
|
|
Configures the X world coordinate displaywhen the X coordinate is calibrated in linear units. |
|
|
Configures the Y world coordinate displaywhen the Y coordinate is calibrated in linear units. |
|
|
Configures the display of pixel (Z) values. |
|
|
Configures the information displayed in the image properties panel at the bottom of the Image Toolbar. |
