Photometry Keywords

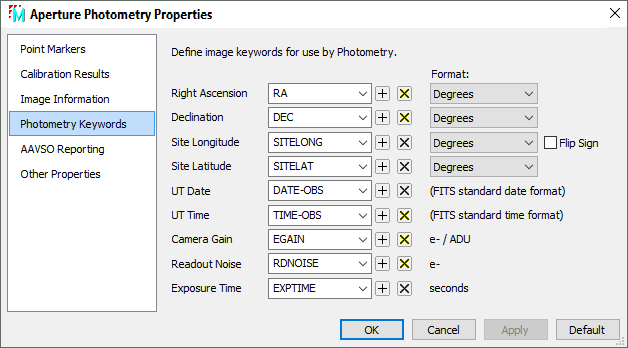

The Photometry Keywords command is used to set keyword names used by the photometry tools to load Properties from the image headers. This command uses the dialog shown below. If these keywords are not present in the image headers, some of them that do not change can be set in the images using the FITS Header Pane.



This dialog is used to set the FITS style header keywords and specify the format that certain keywords will use in your images. For some of these keywords, the format may be either an angle string or a value in decimal degrees.

Photometry Keyword Properties

Right Ascension

The right ascension coordinate in units of either decimal degrees or HMS. You must select the coordinate format from the adjacent list box. Decimal degrees is the standard FITS representation for angles.

Declination

The declination coordinate in units of either decimal degrees or DMS. You must select the coordinate format from the adjacent list box. Decimal degrees is the standard FITS representation for angles.

Site Longitude

The longitude of the observing site in units of either decimal degrees or DMS. You must select the coordinate format from the adjacent list box.

 Flip Sign

This option flips the sign of the longitude specified in the image header. Mira expects longitude to be positive when measured west of Greenwich, England (as in the Americas). Check this box if the longitude in the image header is specified as negative west of Greenwich or vice versa.

Site Latitude

The latitude of the observing site in units of either decimal degrees or DMS. You must select the coordinate format from the adjacent list box.

UT Date

The UT date of observation. Usually this quantity uses the DATE-OBS keyword.

UT Time

The UT time of observation. Usually this quantity uses the DATE-OBS keyword but you can also specify another keyword such as TIME-OBS.

Camera Gain

The camera gain value in units of electrons per ADU (or Digital Number, DN). Usually, this quantity uses the GAIN keyword.

Readout Noise

The camera's readout noise in units of electrons. Usually, this quantity uses the RDNOISE keyword.

Exposure Time

The exposure time in units of seconds. Usually, this quantity uses the EXPTIME keyword.

Related Topics

Aperture Photometry, Aperture Photometry Properties, FITS Keywords, Photometric Measurement Definitions, Photometric Error Definitions
