Changing the Plot Series Mode
Multiple plot Series can be displayed simultaneously, as an Overplot on the same set of plot axes, or as a series of plots that can be viewed separately using the Plot Animation Toolbar. The Continuous mode shows the plots separately, animated, or by single stepping through the set.
Plot Series Modes
|
Overplot |
Draws all plot series simultaneously, graphed on the same set of axes. |
|
Continuous |
Draws one series at a time and allows continuous animation, forward or backward, through the series. Animation can start at any point in the sequence. |
The mode selection is made using the Plot Series Mode submenu. This can be done from a number of places in Mira:
Method 1: Click the drop arrow next to the Row Profile or Column Profile button on the main toolbar, then open the Plot Series Mode submenu.
Method 2: From the Plot Menu when an Image Window is active, the setting applies to new plots from the active window. Click Plot > Plot Series Mode > Overplot as shown below:

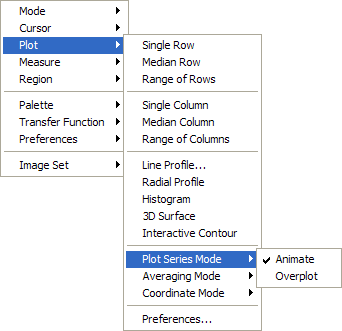

Method 3: From the Image Context Menu, the setting applies to new plots from this window. Click Plot > Plot Series Mode > Overplot as shown below:
After the plot has been created, you can change the Plot Series Mode from the Plot Context Menu (see Plot Windows). If the window contains multiple plot series, the Plot Series Mode option is enabled. Click on the desired mode.
