Save Plot as Text File


The Save Plot as Text File command saves data displayed in a Plot Window to a plain text file for use by other software.

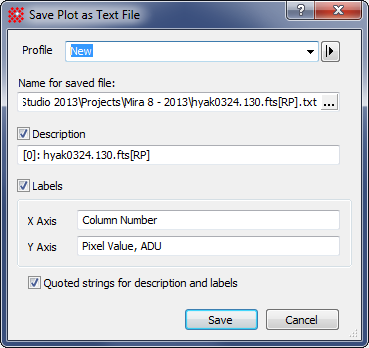

Properties of the Save Plot as Text File Dialog

Profile

Selects the parameter profile for this command.

[Select]

Selects the source images from an image window, folder, files, pattern, or a file list.

Name for saved file

Enter the name of a target output file or select it by clicking the [...] button to open a File Browse dialog for selecting an output file name.

Description

Check this box to save a description of the saved plot data. When checked, this box activates the text field below it.

Labels

Check this box to save labels for the plot axes. When checked, this box activates the two text fields for X Axis and Y Axis labels.

X Axis

Enter the text for labeling the X axis in the text file.

Y Axis

Enter the text for labeling the Y axis in the text file.

Quoted strings for description and labels

Check this box to wrap the label and description strings in quotes in the text file.
