Despeckling Filter

The Despeckling Filter removes isolated impulse noise, or "speckles", from an image by applying a 3x3 median filter to the pixels. This filter imparts a small amount of smoothing to the image as a by-product of speckle removal. Although despeckling can be applied to an image of any pixel type, it is most often applied to RGB images to remove color channel noise as in the Merge LRGB Images command.

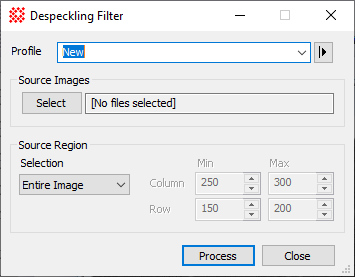

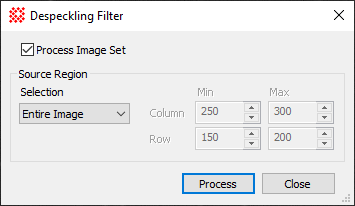

The Despeckling Filter command opens from the Image Window > Process > Filters menu and button on the Main Toolbar. The "immediate" form, shown first, opens when an image or image set is displayed in the top-most window. The general form can be used to select source images from folders, windows, or by matching templates.

Despeckling Filter Properties

Profile [|>]

Selects the parameter profile for this command and allows you to save or work with existing presets.

[Select]

Opens the Select Source Images dialog to choose images from an image window, folder, files, name template, or a Mira File List.

Source Region

Specifies the rectangular region to be processed. The options are as follows:

Entire image

The entire image is processed.

Image Cursor

The region to be processed is selected using the Image Cursor.

Rectangle

The region specified by Min and Max limits for Column and Row coordinates is processed.

Column and Row, Min and Max

When Rectangle is selected, these values specify the column and row limits to be processed.
