Shift Image
The Shift Image command applies a precision shift to an Image Set or a single image. The shift moves the image values on the underlying coordinate system. The shifts\ values may be any number of whole pixels or decimal portions thereof.
The Shift Image command opens from the
Image Window > Process >
Geometry menu and
button

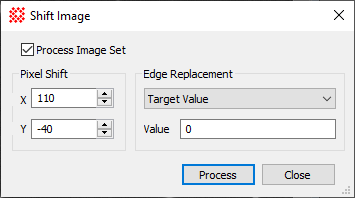

on the Main Toolbar. The "immediate"
form, shown first, opens when an image or image set is displayed in

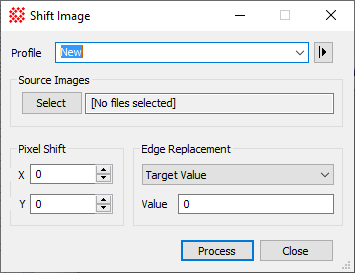

the top-most window. The general form can be used to select source
images from folders, windows, or by matching templates.
|
Shift Image Properties |
|
|
Profile [|>] |
Selects the parameter profile for this command and allows you to save or work with existing presets. |
|
[Select] |
Opens the Select Source Images dialog to choose images from an image window, folder, files, name template, or a Mira File List. |
|
X |
The shift in pixels along the horizontal direction. |
|
Y |
The shift in pixels along the vertical direction. |
|
Edge Replacement |
This group specifies how blank pixels are filled with a value when the shifted image exposes blank pixels. Target Value fills the blank area with the specifiedValue. Image Margin fills the blank area with a value typical of pixels along the image margin. Value is the specific value to set when the Target Value option is selected. |
|
Value |
Specifies the value assigned to the blank area when the Edge Replacement method is Target Value. |
The signs of the shift values are taken as positive if the image is moved in the direction of increasing coordinate value. For the different formats, this can appear differently on the screen. For a FITS image, X and Y increase to the right and upward, respectively. For the other graphics format images, X and Y increase to the right and downward. You can tell which direction things will move my roaming the mouse pointer over the image and noting which direction the coordinates increase.
The "edge" refers to the blank pixels that rotate into the output image from off the edge of the original image. These pixels have no value but something must be done with them. Mira give you two options for assigning them a value:
Use the typical value for pixels near the margin of the original image, or
Assign a specific edge value, such as 0.
