Apply Pixel Mask
The Apply Pixel Mask command corrects point artifacts in an image by obtaining their coordinates from a pixel mask. The pixel mask is created using the Create Pixel Mask command or Edit Pixel Mask command.
The Apply Pixel Mask command opens from
the Image Window > Process >
Calibration menu and
button

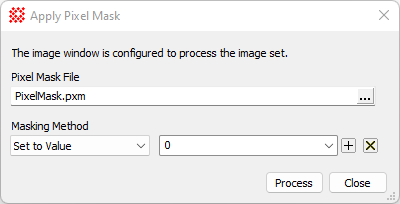

on the Main Toolbar. The "immediate"
form, shown first, opens when an image or image set is displayed in

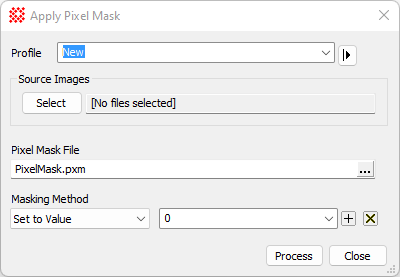

the top-most window. The general form can be used to select source
images from folders, windows, or by matching templates.
Apply Pixel Mask Properties
|
Profile [|>] |
Selects the parameter profile for this command and allows you to save or work with existing presets. |
|
[Select] |
Opens the Select Source Images dialog to choose images from an image window, folder, files, name template, or a Mira File List. |
|
Pixel Mask File |
Enter a name for the pixel mask file or click [...] to browse for a file name. |
|
Masking Method |
Select the method to use for correcting the artifacts. |
|
Value |
Specify the value to set when "Value" is selected for the Masking Method. |
Repairing Artifacts and Cosmetic Defects, Clean Image Set, Cosmic Ray Filter, Create Pixel Mask, Edit Pixel Mask, Apply Blemish Mask, Express Image Calibration, Cosmetic Correction Properties
