Set Linear Coordinate Units
The Set Linear Coordinate Units command assigns coordinate system names for the X and Y image axes. The names may be different for each axis. For example, the image may be a radio astronomy image with frequency versus flux or a numerical simulation showing a 2-D map of velocity versus density. The number of digits displayed for each linear coordinate is set using the Set X-Axis Linear Format and Set Y-Axis Linear Format commands.
This command is opened from the Process > Coordinates menu.
|

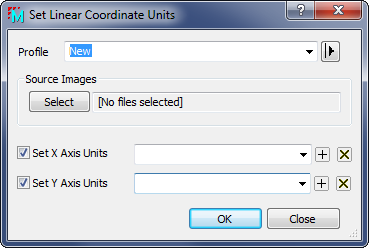

Properties of the Set Linear Coordinate Units command |
|
|
Profile |
Selects the parameter profile for this command. |
|
[Select] |
Selects the source images from an image window, folder, files, pattern, or a file list. |
|
|
Check this box to enter a world coordinate name for the X axis. The name is entered or selected in the text field to the right. |
|
|
Check this box to enter a world coordinate name for the Y axis. The name is entered or selected in the text field to the right. |
