Set Brightness Units
The Set Brightness Units command specifies a name for the image brightness (pixel value). This name is used for pixel value listed as the Z axis in the Image Toolbar. The value is inserted into the image header as the BUNIT keyword.
This command is opened from the Process > Coordinates menu.
|

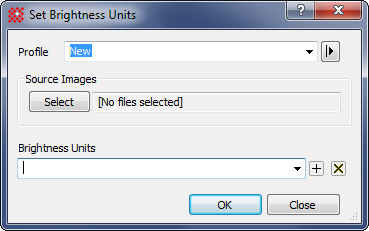

Properties of the Set Brightness Units Dialog |
|
|
Profile |
Selects the parameter profile for this command. |
|
[Select] |
Selects the source images from an image window, folder, files, pattern, or a file list. |
|
Brightness Units |
Enter the name of the brightness units or select a prior value from the history list. For example, in radio astronomy, the unit might be Jy, for "Jansky". |
