Report Windows

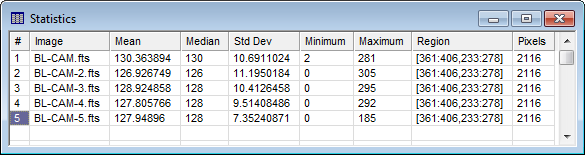

Report Windows enclose a grid control showing measurements in a tabular format. They are a window version of a measurement pane. Grid properties can be changed using the Grid Properties command. A typical Report Window is shown below.
Report Windows provide common functionality for work with the grid data. You can edit, sort, rearrange, and save the contents of the grid. For Report Windows, the Report Window Menu and the Grid Command Menu contain commands for working with the measurement data. See the details in Grid Controls.
You can control whether Mira prompts to confirm closing a Report Window using the check list item in the General Properties dialog.
Accelerators listed below execute commands when a Report Window has focus becuase it is the top-most view window.
Report Window Accelerators
|
Ctrl+A |
Opens the Grid Properties dialog. |
|
Ctrl+C |
Executes the Copy command, which copies the selected cells to the Windows clipboard. |
|
Ctrl+N |
Executes the New command, which displays the New Document dialog. |
|
Ctrl+O |
Executes the File > Open command, which displays the Open dialog. |
|
Ctrl+P |
Prints the Report Window. |
|
Ctrl+R |
Opens the General Properties. Here you can set global Properties for working with images and plots, as well as other aspects of the user interface. |
Measuring Images, Grid Controls, Grid Properties, Grid Command Menu, Report Window menu
