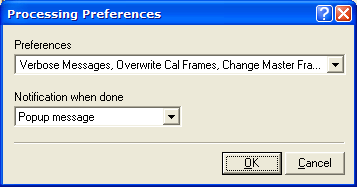

Calibration Pipeline Processing Properties

Undo

If checked, an Undo copy is saved for each image. This setting applies only if images are processed from an Image Window using the Window option on the Image Calibration dialog.

Verbose

If checked, Mira provides a written log of the steps performed by the image processing pipeline. The messages are written into a Text Editor window after the pipeline completes. You can edit, save, or print the messages from the editor using the normal commands.

Overwrite Cal Frames

If checked, calibration frames are overwritten without warning.

Change Master Frame Image Type

If checked, the image type of the master frame is prefixed with the word "Master". For example, if the original images have an image type of "Bias" then the master bias frame will have the image type "Master Bias". If unchecked, the image type is unchanged between the component frames and the master frame. See Image Types.
