Maximum Filter
The Maximum Filter is a type of Rank Filter that replaces pixel values with the 100th percentile ranked, or maximum, value identified in the local neighborhood. Use this filter to remove values below the local statistical "ceiling". In comparison, the Minimum Filter selects the 0-th percentile, or minimum, value in the neighborhood.
This command opens from the Process > Filters menu.

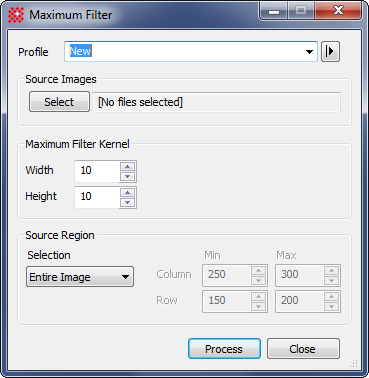

Properties of the Maximum Filter
|
Profile Selects the parameter profile for this command. |
|
|
[Select] |
Selects the source images from an image window, folder, files, pattern, or a file list. |
|
Width |
Specifies the width of the maximum filter neighborhood in terms of pixels along the horizontal (row) direction. |
|
Height |
Specifies the height of the maximum filter neighborhood in terms of pixels along the vertical (column) direction. |
|
Source Region |
Specifies the rectangular region to be processed. The options are as follows: Entire image: The entire image is processed. Image Cursor: The region to be processed is selected using the Image Cursor . Rectangle: The region specified by Min and Max limits for Column and Row coordinates is processed. Column and Row, Min and Max: When Rectangle is selected, these values specify the column and row limits to be processed. |
