Extract Channel
The Extract Channel extracts 1 or more channel planes from an RGB image and creates a new image containing the channel. If more than 1 channel is specified, the channel images may be saved as an Image Set in a single window.
Open this command from the Process > RGB Images menu.
|

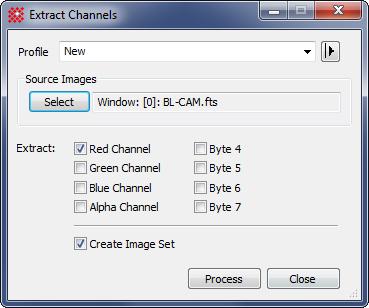

Properties of the Extract Channel Command |
|
|
Profile |
Selects the parameter profile for this command. |
|
[Select] |
Selects the source images from an image window, folder, files, pattern, or a file list. |
|
Extract |
Specifies which channels are to be extracted. Each channel creates a new image. |
|
|
Check this box to extract the channel images to an Image Set in a single image window. |
Create Image Set
