Crop Image
The Crop Command cuts out a rectangular piece of an image and discards everything outside the rectangle This command has an interactive mode and a manual mode as described below. The related Crop at Cursor command is an express version of the Crop command.
This command opens from the Process > Geometry menu or from the Image Context menu.
|

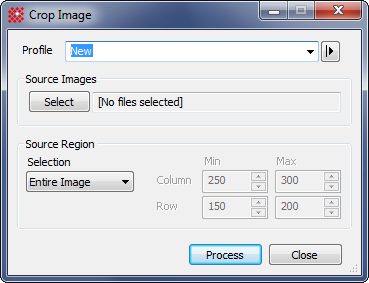

Properties of the Crop Image Command |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Profile |
Selects the parameter profile for this command. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
[Select] |
Selects the source images from an image window, folder, files, pattern, or a file list. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Source Region |
Specifies the rectangular region to be processed. The options are as follows: Entire image: The entire image is processed. Image Cursor: The region to be processed is selected using the Image Cursor . Rectangle: The region specified by Min and Max limits for Column and Row coordinates is processed. Column and Row, Min and Max: When Rectangle is selected, these values specify the column and row limits to be processed. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tip |
To crop an entire Image Set with identical position and size, press the
|
Geometry Commands, Crop at Cursor, Copy and Paste Commands, Duplicate, Image Cursor
button on the Image Toolbar or enable
Process Image Set mode before using the present command.
