Rank Filter
The Rank Filter replaces pixel values with a specific ranked percentile value identified in the local neighborhood. The Median Filter is a special rank filter which selects the median, or 50th percentile, value. Other special purpose rank filters are the Minimum Filter and Maximum Filter..
The Rank Filter command opens from the
Image Window > Process >
Filters menu and
button

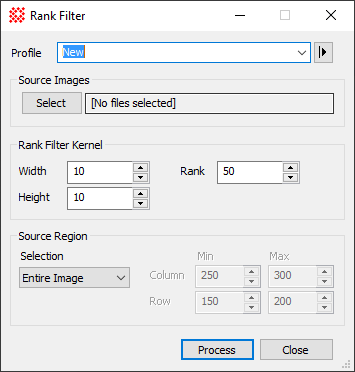

on the Main Toolbar. The "immediate"
form, shown first, opens when an image or image set is displayed in
the top-most window. The general form can be used to select source
images from folders, windows, or by matching templates.
Rank Filter Properties
|
Profile [|>] |
Selects the parameter profile for this command and allows you to save or work with existing presets. |
|
[Select] |
Opens the Select Source Images dialog to choose images from an image window, folder, files, pattern, or a file list. |
|
Width |
Specifies the width of the rank filter neighborhood in terms of pixels along the horizontal (row) direction. |
|
Height |
Specifies the height of the rank filter neighborhood in terms of pixels along the vertical (column) direction. |
|
Rank |
Specifies the rank percentile to be selected among pixel values in the neighborhood specified by Width and Height. |
|
Source Region |
Specifies the rectangular region to be processed. The options are as follows: Entire image: The entire image is processed. Image Cursor: The region to be processed is selected using the Image Cursor. Rectangle: The region specified by Min and Max limits for Column and Row coordinates is processed. Column and Row, Min and Max: When Rectangle is selected, these values specify the column and row limits to be processed. |
