Pixel
Table Pane Pixel
Table Pane

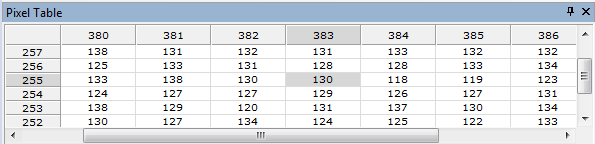

The Pixel Table Pane shows the discrete pixel values in a grid format. The values are centered on the Image Cursor. The pixel values track movements of the Image Cursor and the size of the tracking region may be specified using the right-click grid menu. The size of the The Pixel Table Pane may be resized and moved to a different window border or detached from the window entirely. The stick-pin allows you to reduce the pane to a tab which opens and hides from the window border.
Open the pixel Table Pane from the View > Cursor > Pixel Table Pane command or
from the drop menu of the button
on the Image
Tools Toolbar.
This command can also be operated using the 'P' keystroke command.
The size of the region displayed in the table may be set using commands in the Pixel Table Menu. To open the menu, right-click anywhere on the grid. Other tools are available as shown in the menu below.
