Edit Pixel Mask
The Edit Pixel Mask command is used to view or input the coordinates of bad pixels A bad pixel list is used by the Apply Pixel Mask command to repair isolated hot and cold pixels (to learn more, see Working with Pixel Masks, below). The Pixel Mask Editor contains a data grid that lists pixel coordinates. Use this tool to create new pixel masks or to review and edit masks created using the Create Pixel Mask command. If working with defects larger than isolated pixels, consider workign with a blemish mask (see the Edit Blemish Mask and Apply Blemish Mask commands).
Open the Pixel Mask Editor from the Process > Cosmetics menu.

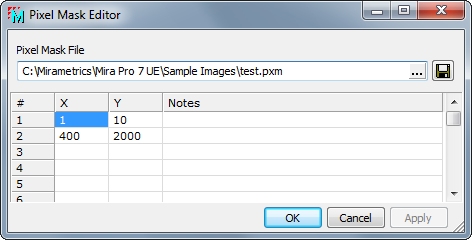

The dialog above shows 2 bad pixels at coordinates (1,10) and (400,2000). These data were loaded from the file test.pxm. After changing the pixel descriptions or adding new ones, the mask can be saved back to its file or to a new file. Entries in the Notes column are optional.
The Pixel Mask Editor contains a data grid that lists the (column,row) coordinates of each mask location. The currently loaded pixel mask file is named in the edit field at the top of the window. Pixel mask files have a .pxm. file name extension. Several important commands related to the data grid are located in a right-click context menu.
Type X (column) and Y (row) coordinates for each pixel location on a separate line of the table. The Notes entry is optional.
The editor adds lines in chunks of 100. If you run to the end of the buffer, right click on the table to open its context menu and select Append Rows. Then continue entering mask data.
Save your changes (see below).
Click
on the right end of
the Pixel Mask File field. Select the
pixel mask file and click [Open] to
load the pixel mask.
Edit (x,y) pixel coordinates as needed. Note that the editor adds lines in chunks of 100. If you run to the end of the buffer, right click on the table to open its context menu and select Append Rows. Then continue entering pixel coordinate data.
Save Changes (see below).
When you are finished entering data for a pixel mask, save using one of these methods:
Click [Apply] to save to the original file.
Click the
button
to save it to a new file or a different file.
In the context of cosmetic repairs, a pixel mask is a collection of point coordinates that describe bad pixel locations in an image. When a pixel mask is applied to an image, the value at each mask coordinate is replaced by a value obtained from the neighboring pixels. This technique is used to repair defective pixels or "hot" pixels caused by thermal noise in CCD images. If the bad pixel locations do not change, then the same mask can be used for many images on different occasions.
A Pixel Mask is usually stored in a file with a
pxm extension, like
Pixel-mask.pxm, although txt or
any other extension is possible. Each line describes the
coordinates of 1 pixel. The Notes
column holds an optional comment.
|
Note |
Remember that coordinates in Mira are 1-based, meaning that pixel (1,1) is the origin of the image array. See Image Coordinate System and Pixel Coordinate Definition. |
