Calculate Airmass

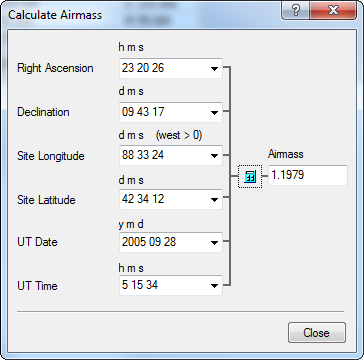

The Calculate Airmass command opens a worksheet dialog where you can calculate an airmass value. The calculation requires the 6 quantities described in the table below. They are entered into the dialog shown here. To calculate the airmass, enter the 6 quantities in the formats like those shown and click the button. For a description of input formats, see the section Data Formats, below.

This worksheet is opened from the Main Context Menu. When an image window is top-most, the worksheet also can be opened from the Process > Utilities menu.

Parameters for Airmass Calculation
Right Ascension	The right ascension coordinate in units of HMS. The seconds value can have decimal digits.
Declination	The declination coordinate in units of DMS. The seconds value can have decimal digits.
Site Longitude	The longitude of the observing site in units of DMS. The seconds value can have decimal digits.
Site Latitude	The latitude of the observing site in units of DMS. The seconds value can have decimal digits.
UT Date	The UT date of observation in units of YMD.
UT Time	The UT time of observation in units of HMS. The seconds value can have decimal digits.

Data Formats

The 6 input fields each accept multiple values in the form of (Hours, Minutes, Seconds), (Degrees, Minutes, Seconds), or (Year, Month, Day). These are also known as HMS, DMS, and YMD formats, respectively. In using these formats, Mira tolerates a variety of delimiters between the numbers in each field. All the accepted delimiters are listed in the table below. The dialog shown above simply uses spaces between the numbers (listed as (space) in the table).

Field delimiters
HMS	(space) / : – , H h M m S s
DMS	(space) / : – , D d M m S s
YMD	(space) / : – , Y y M m D d (degree) " '

Choose a delimiter that works for you because it is easy to type or makes the entry easy to understand.
