Using Point Deletion in the 1-D Fit
The 1-D Fit Package provides several ways to select points to be discarded from the polynomial fit. Manual point deletion allows you to remove specific points before the data are fit. The pictures below describe this process.

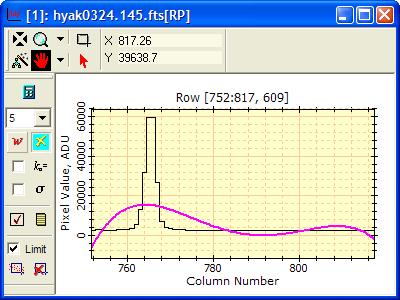

The picture below shows the original data fit by a 5 term polynomial. Sigma clipping is not enabled, so the peak in the data pulls the fit upward, resulting in overshoot at other locations.

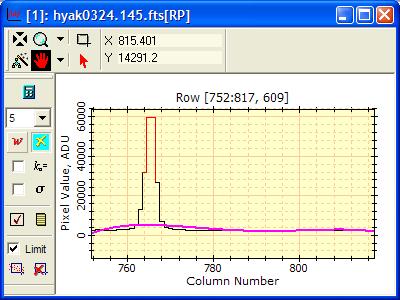

The picture below shows Delete mode enabled by clicking
. Afterwards, the data shown in red
were deleted. Then
was clicked to
update the fit. The point deletion leads to a better fit that
disregards the peak.

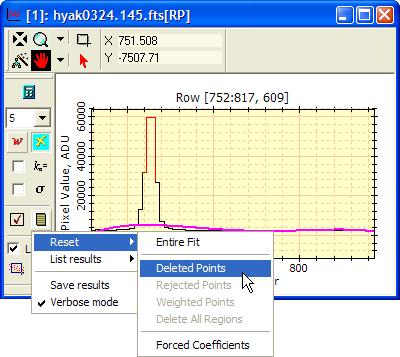

The picture below shows deleted points being
restored. Click the menu button
and select Reset
> Deleted Points from the menu. Afterwards, the data will
appear as in the picture at the top of the page.
