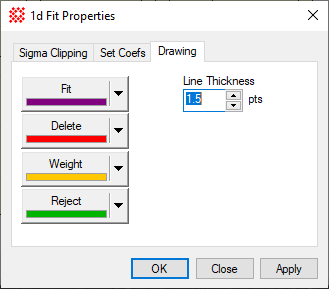

Drawing Page (1-D Fit Properties)

This page sets the colors and size of the fit curve and points that are rejected, weighted, or deleted from the fit in the 1-D Fit Package.

Drawing Properties
Fit	Specifies the color of the fit curve drawn on the plot.
Delete	Specifies the color of deleted points.
Weight	Specifies the color of weighted points.
Reject	Specifies the color of points rejected by the fit when iterative sigma clipping is enabled.
Line Thickness	The thickness of the fit curve drawn on the plot. This is measured in points, with 72.27 points per inch.

Note	The color and thickness of the fit curve can also be changed using the Plot Series Attributes dialog.
