Examples of Adding Series to a Line Profile Plot
The figures below show an example of adding plot series to a Line Profile. The first plot was made using Draw Mode and subsequent plot series were made using Move Mode with Move Perpendicular enabled. When more than 1 plot series is displayed in a Plot Window, you can use the Plot Animation Toolbar to step between or animate the series.
First plot made in Draw Mode:

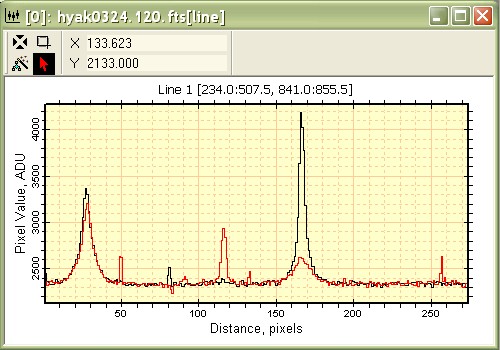

The figure below show the same Plot Window after making the first over-plot with Move Perpendicular enabled in the drop menu:
The Plot Windows after the 4-th over-plot (5 plot series in total):
The examples above use color cycling to distinguish the plot series. You can change the plot series colors, the cycling interval, or make them identical, using the Plot Preferences page of the Mira Preferences dialog.
