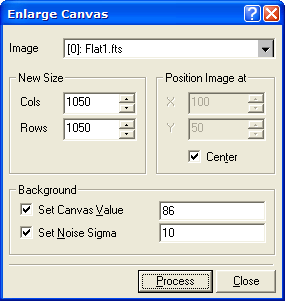

Enlarge Canvas


The Enlarge Canvas command enlarges the image by extending the image border to a larger area. The result is the original image data imbedded in a canvas of uniform luminance. This command is usually used before imbedding images into the canvas.

Set Canvas Value

The Set Canvas Value check box accepts the value you want to assign the background. If this box is unchecked, a value of 0 is used.

Set Noise Sigma

The Set Noise Sigma check box instructs Mira to add Gaussian random noise to the canvas value and to use the specified Sigma value as the standard deviation of the noise spectrum (in other words, the standard deviation of the Gaussian).

Position Image at

This is the coordinate of the corner of the old image in the new canvas. Mira coordinates are 1-based, which means that using a value of (1,1) makes the corners exactly flush.

If you check the Center check box, Mira centers the old image in the new canvas, ignoring the X and Y position values you specified.

Related Topics

Geometry Commands, Imbed Image
