Create Image Keyword List
The Create Image Keyword List command generates a catalog (or list) of image keyword values in a Table window. The table contents may be graphed, saved to a file, printed, or coped to the clipboard. See Arranging Report Data for details. Images and image sets can be displayed from the table by checking the boxes of an image set or by double-clicking on a specific image.
This command is opened using the File > Create Image Keyword List command.

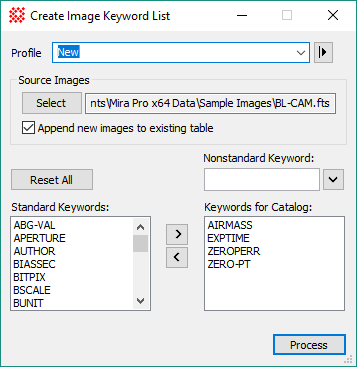

Create Image Keyword List properties
|
Profile [|>] |
Selects the parameter profile for this command and allows you to save or work with existing presets. |
|
Select |
Opens the Select Source Images dialog to choose images from an image window, folder, files, pattern, or a file list. |
|
Reset All |
Resets the Standard Keywords and Keywords for Catalog list boxes. The standard list box is reset to Mira's internal list of standard keywords. The catalog list box is reset to empty. |
|
Nonstandard Keyword |
Supplemental or nonstandard keywords to be added to the Keywords for Catalog list box. Click the down arrow to add the keyword to the Catalog list box. |
|
Standard Keywords |
Reference keywords for populating the Keywords for Catalog list box. |
|
[>] [<] |
These buttons are used to move selected keywords between the two list boxes. |
|
Keywords for Catalog |
The list of keywords that will be listed in the catalog |
Keywords to be listed in the catalog are taken from the Keywords for Catalog list box on the right wide of the dialog. Keywords are entered into this box either by using the [>] button to transfer them from the Standard Keywords in the list box on the left, or by inserting them from the Nonstandard Keyword field above.
A new profile populates the Standard list box with Mira's internal set of standard keywords. As keywords are moved from the Standard list to the Catalog list, they are removed from the Standard list. Nonstandard keywords can also be added to the Catalog list by entering them into the Nonstandard field and clicking the down arrow. Since keywords moved back into the Standard list may include those added as Nonstandard keywords, you can supplement Mira's standard list with your own keywords (in this command only) which are saved for future use when you save the profile. Saving the profile saves both lists and the other dialog properties for future use.

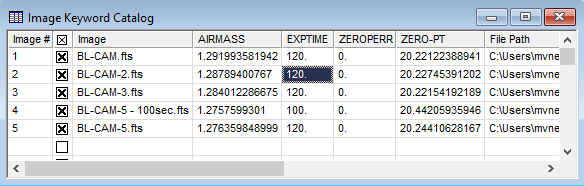

Quantities Listed in the Keyword Table
|
Image # |
Sequential number in table |
|
|
Check this box for each image you want to display as an image set. To select all images (or unselect all images), check the box in the top header row. To display a single image, double click on it (with or without the box checked). |
|
Image Name |
The image name, not including the file path. |
|
<Keywords> |
Some number of columns listing values of the specified keywords. |
|
File Path |
The path of the image file. |
