Apply Pixel Mask
The Apply Pixel Mask command corrects point artefacts in an image by obtaining their coordinates from a pixel mask. The pixel mask is created using the Create Pixel Mask command or Edit Pixel Mask command.
Open the Apply Pixel Mask command from theProcess > Calibration menu.

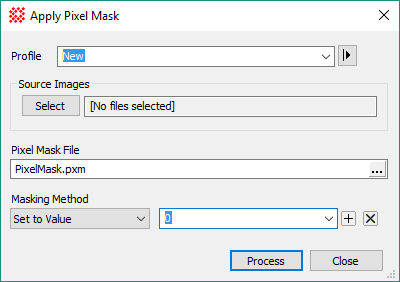

Apply Pixel Mask Properties
|
Profile [|>] |
Selects the parameter profile for this command and allows you to save or work with existing presets. |
|
[Select] |
Opens the Select Source Images dialog to choose images from an image window, folder, files, pattern, or a file list. |
|
Pixel Mask File |
Enter a name for the pixel mask file or click [...] to browse for a file name. |
|
Masking Method |
Select the method to use for correcting the artefacts. |
|
Value |
Specify the value to set when "Value" is selected for the Masking Method. |
Repairing Artefacts and Cosmetic Defects, Create Pixel Mask, Edit Pixel Mask, Apply Blemish Mask, Express Image Calibration, Cosmetic Correction Properties
