Plot Axis Labels and Titles

The Axis Labels and Titles page allows you to alter the text of the labels used in a Plot Window. Use this page to change the x and y axis labels, the caption, and the Plot Window caption. Mira saves recently used labels in the Profile controls for each property. This makes it easy to work with labels used in previous plots.

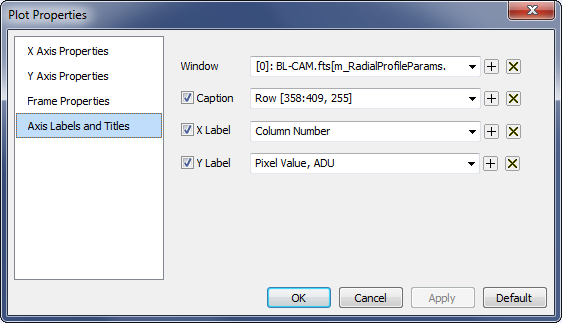

To open the Axis Labels and Titles page, open the Plot Properties dialog and select the Axis Labels and Titles.

Axis Labels and Title Properties
Window	Specifies the title of the Plot Window.
Caption	If checked, specifies the caption above the plot box. If unchecked, there is no plot caption.
X Label	If Checked, specifies the caption used for the x axis. If unchecked, there is no x axis caption.
Y Label	If Checked, specifies the caption used for the y axis. If unchecked, there is no y axis caption.
