Set X-Axis Linear Format


The Set X-Axis Linear Format command controls the display of linear X-axis coordinates in the Image Toolbar. These settings only apply to images having a linear world coordinate calibration for the X axis. For example, if the X axis is calibrated in units of microns then these settings apply. But they do not apply if the X axis has no calibration or is calibrated in, e.g., right ascension.

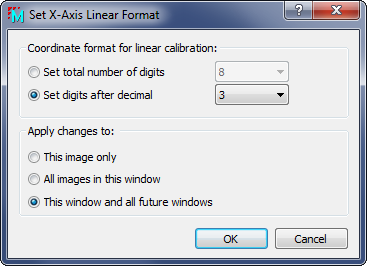

Properties of the Set X-Axis Linear Format command

Coordinate format for linear calibration



bullet_marked.png Set total number of digits

Use this option to use the drop list to select the maximum number of displayed digits. For example, selecting "6" with the coordinate value 123.456789 would display 123.456.

bullet_marked.png Set digits after decimal

Use this option to use the drop list to select the number of digits right of the decimal point. For example, choosing "2" with coordinate value 123.456789 would display 123.45.

Apply changes to:



 This image only

Applies the settings to this image only.

bullet_marked.png All images in this window

Applies the settings to this image and all others in this Image Window.

bullet_marked.png This window and all future windows

Applies the changes to all images in this Image Window and saves the settings for all future Image Windows.
