Centroid Properties (Markers)


The Centroid Properties page page of the Marker Properties dialog controls how positions are marked on the image. This page is part of the Marker Properties dialog which is used by various drawing commands. This is a generic dialog. The title and set of enabled controls that appear on the page depend upon the package that opened it.

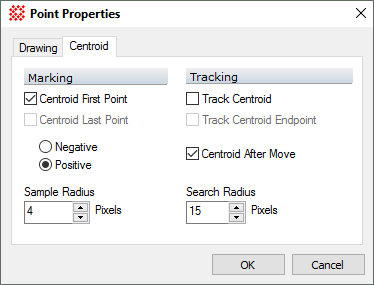

Marker Centroid Properties

Centroid First Point

Check this box to centroid the starting point, or only point, used for locating the marker.

 Centroid Last Point

Check this box to centroid the ending point used for locating the marker. This applies to lines

bullet_marked.png Negative

bullet_marked.png Positive

Selects whether to centroid on positive-going values (peaks) or negative-going values (valleys).

Sample Radius

Specify the radius, in pixels, used for computing the centroid (first point and last point).

 Track Centroid

Check this box to track the centroid position of the first (or only) point when tracking the marker through an image set.

 Track Centroid Endpoint

Check this box to track the centroid position of the last point when tracking the marker through an image set.

 Centroid After Move

Check this box to centroid the marker after re-positioning it in Move mode.

Search Radius

Enter the radius, in pixels, used for tracking the marker through an image set.

Using Properties here, the marker can be centroided at its beginning or ending point, or at both points or not at all. The meaning if the centroid Properties is as for other cases where centroiding is used. For example, see the Centroid Properties for measuring images.

Choosing Sample Radius and Tracking Radius

Centroiding on Positive and Negative Points

Centroid positions are computed using image data, not the screen display. Choose Positive points or Negative points based upon the type of object to measure rather than the palette or other image display properties. For modern, inherently digital images, you will almost always choose Positive points. For scanned photographs, however, you may be working with a negative image and would choose the NegativePoints option.

Saving Changes

Set the Properties as desired, then accept the changes by clicking [Apply].
