Background page (Source Extraction)

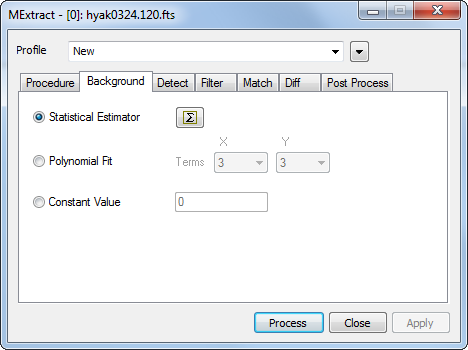

The Background page of the Source Extraction dialog configures the background measurement used by the Extract Sources command. Unless the image has already been flattened, it is best to use the polynomial fit to track the large-scale background changes.

Background Properties

 Statistical Estimator

Calculates the background as a single statistical value based on analysis of the entire image.

Click this button to configure the Statistical Estimator using the Region Statistics command.

 Polynomial Fit

Calculates the background as the value of a polynomial fit to the entire image surface.

X, Y Terms

Enter the number of terms used for the Polynomial Fit method. For example, 1 term for X fits a constant value in the X (column number) direction, and 3 terms in Y fits a parabola in the Y (row number) direction.

 Constant Value

Assigns a fixed value to the background, independent of the image brightness.

Related Topics

Extract Sources command, Source Extraction Dialog
