Set Brightness Units


The Set Brightness Units command specifies a name for the image brightness (pixel value). This name is used for pixel value listed as the Z axis in the Image Toolbar. The value is inserted into the image header as the BUNIT keyword.

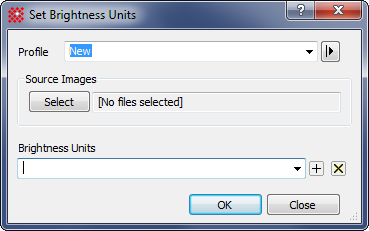

Properties of the Set Brightness Units Dialog

Profile

Selects the parameter profile for this command.

[Select]

Selects the source images from an image window, folder, files, pattern, or a file list.

Brightness Units

Enter the name of the brightness units or select a prior value from the history list. For example, in radio astronomy, the unit might be Jy, for "Jansky".

Related Topics

World Coordinate System
