Plotting Examples
Below are shown some examples that illustrate the image plotting capabilities of Mira.

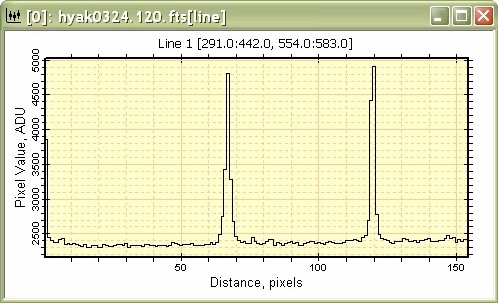

The figure below shows a simple Line Profile plot in Pixel Coordinates.

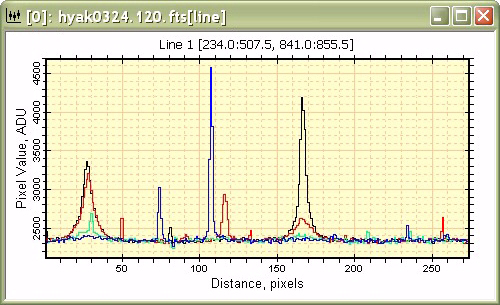

The following example shows a Line Profile with several Overplotted Plot Series created from data along lines parallel to the first line.

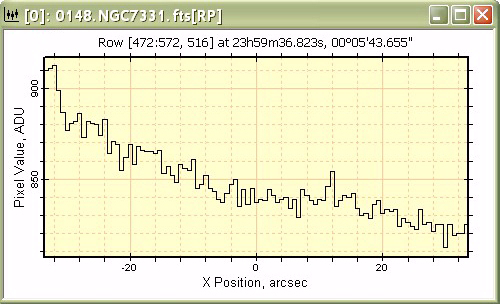

The figure below shows a Row Profile from an image with a World Coordinate System calibration.

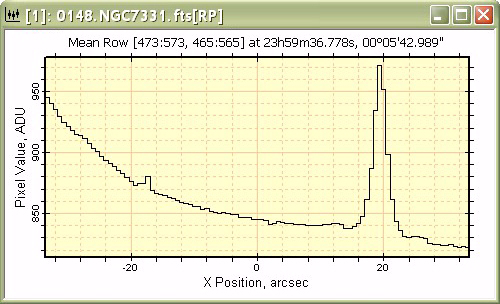

The next figure below plots an Average Row sampled over 101 rows and using world coordinates.
