Despeckling Filter


The Despeckling Filter removes isolated impulse noise, or "speckles", from an image by applying a 3x3 median filter to the pixels. This filter imparts a small amount of smoothing to the image as a by-product of speckle removal. Although despeckling can be applied to an image of any pixel type, it is most often applied to RGB images to remove color channel noise as in the Merge LRGB Channels command.

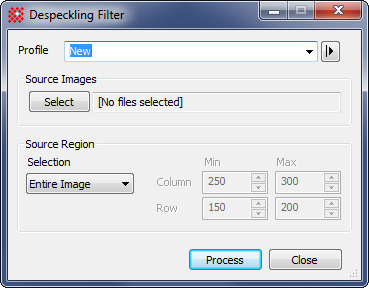

Properties of the Despeckling Filter

Profile

Selects the parameter profile for this command.

[Select]

Selects the source images from an image window, folder, files, pattern, or a file list.

Source Region

Specifies the rectangular region to be processed. The options are as follows:

Entire image: The entire image is processed.

Image Cursor: The region to be processed is selected using the Image Cursor .

Rectangle: The region specified by Min and Max limits for Column and Row coordinates is processed.

Column and Row, Min and Max: When Rectangle is selected, these values specify the column and row limits to be processed.

Related Topics

Spatial Filter Commands, RGB Image Commands,
