Crop Image


The Crop Command cuts out a rectangular piece of an image and discards everything outside the rectangle This command has an interactive mode and a manual mode as described below. The related Crop at Cursor command is an express version of the Crop command.

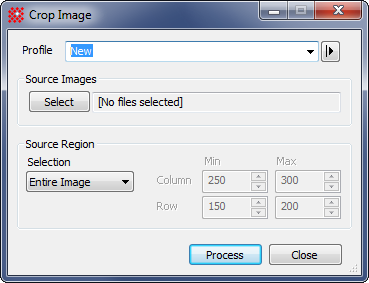

Properties of the Crop Image Command

Profile

Selects the parameter profile for this command.

[Select]

Selects the source images from an image window, folder, files, pattern, or a file list.

Source Region

Specifies the rectangular region to be processed. The options are as follows:

Entire image: The entire image is processed.

Image Cursor: The region to be processed is selected using the Image Cursor .

Rectangle: The region specified by Min and Max limits for Column and Row coordinates is processed.

Column and Row, Min and Max: When Rectangle is selected, these values specify the column and row limits to be processed.

Tip

To crop an entire Image Set with identical position and size, press the button on the Image Toolbar or enable Process Image Set mode before using the present command.
